Windpark Würselen (Germany)
Construction period: 4 weeks
Execution year: 2024
Client: NORDEX
Address: Würselen-Broichweiden, Germany
1x NORDEX N131
1x NORDEX N117
Cable Ducts for NORDEX N131 – TS106
Base Concrete Layer
Center Point

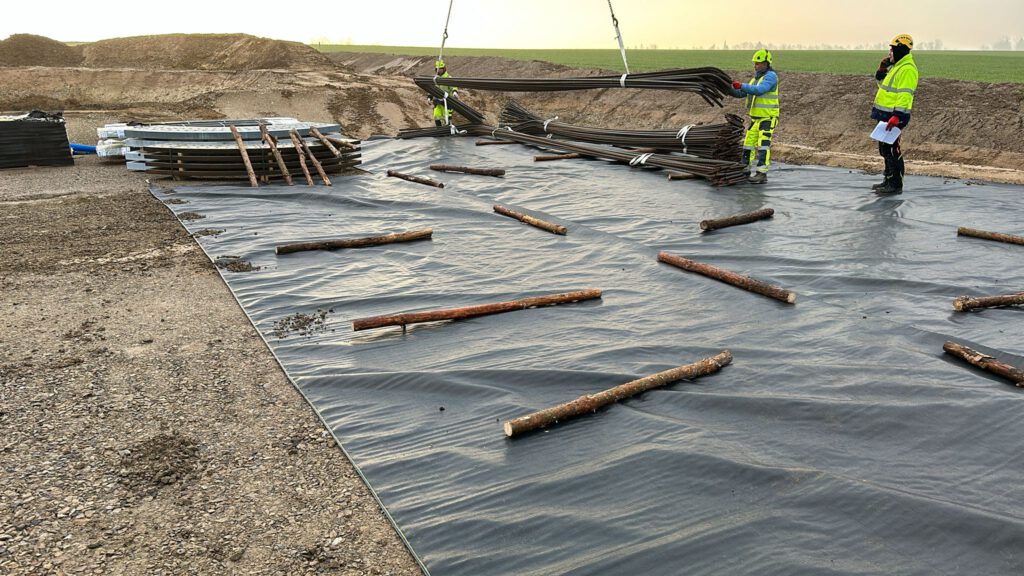

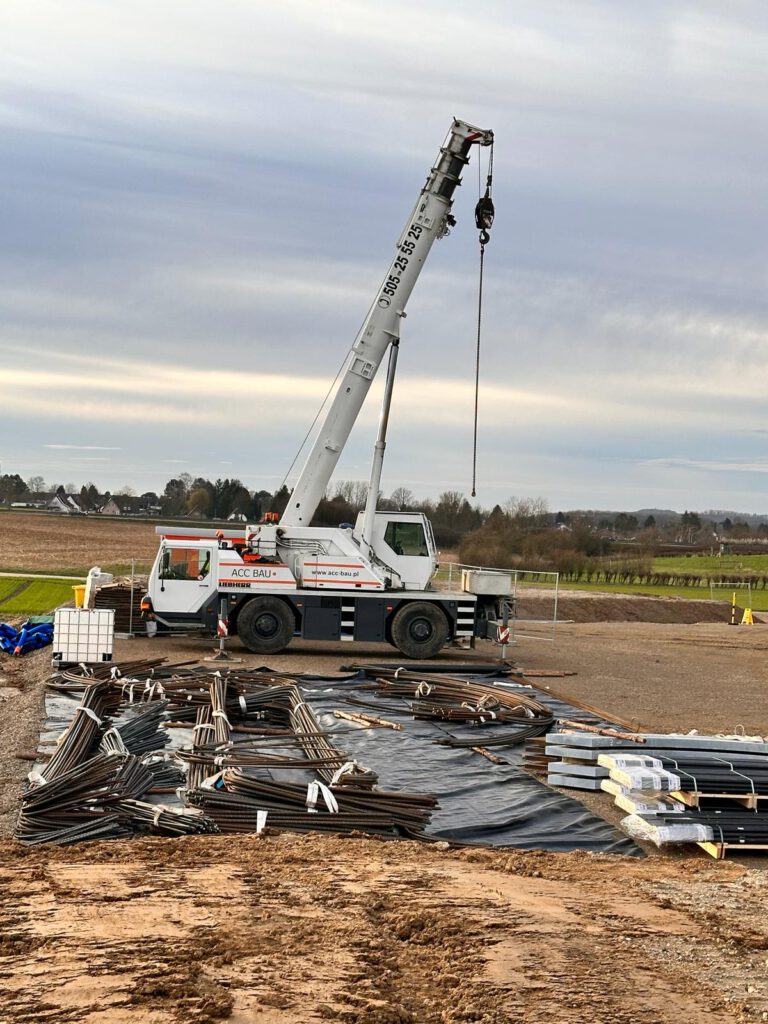

Unloading of reinforcement steel
Laydown Area
Reinforcement Steel
B 500
Reinforcement
Steel laying
Reinforcement Team

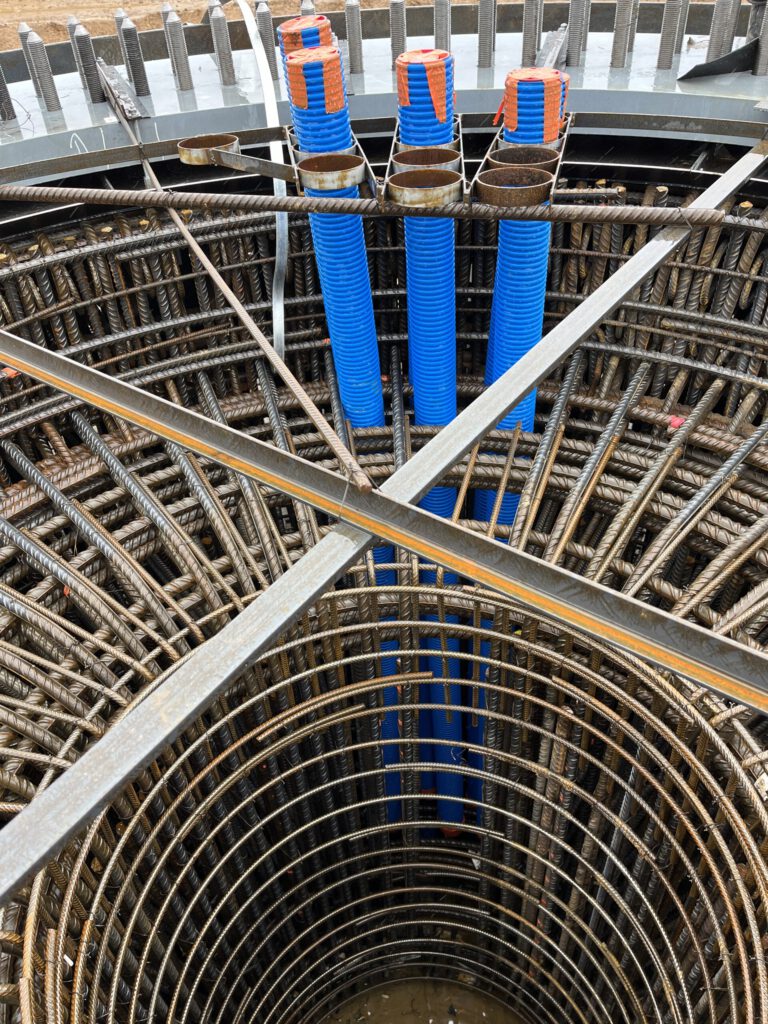

The inner of the foundation
Massive steel
Loads transfer section detail

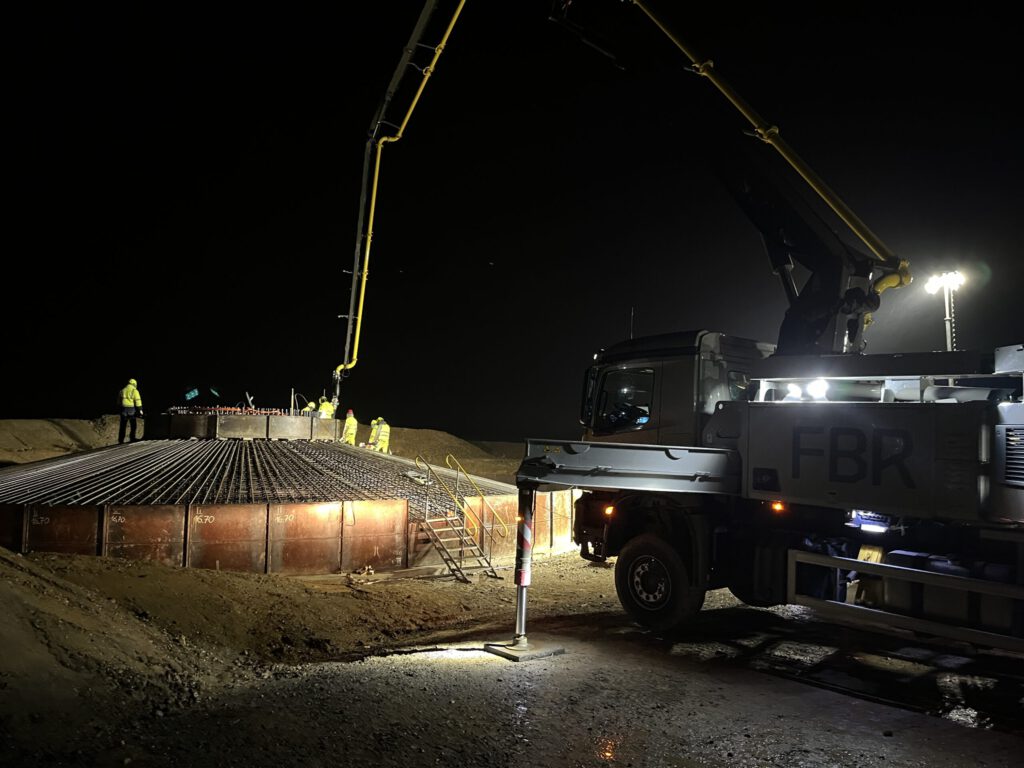

Concrete casting start 05:00 h
Vibrating first lower concrete layer
Filling the massive plate
Test cubes
Smoothing the surface
Finishing the pedestal
Casting complete
Shuttering removed and external earthing ring installed

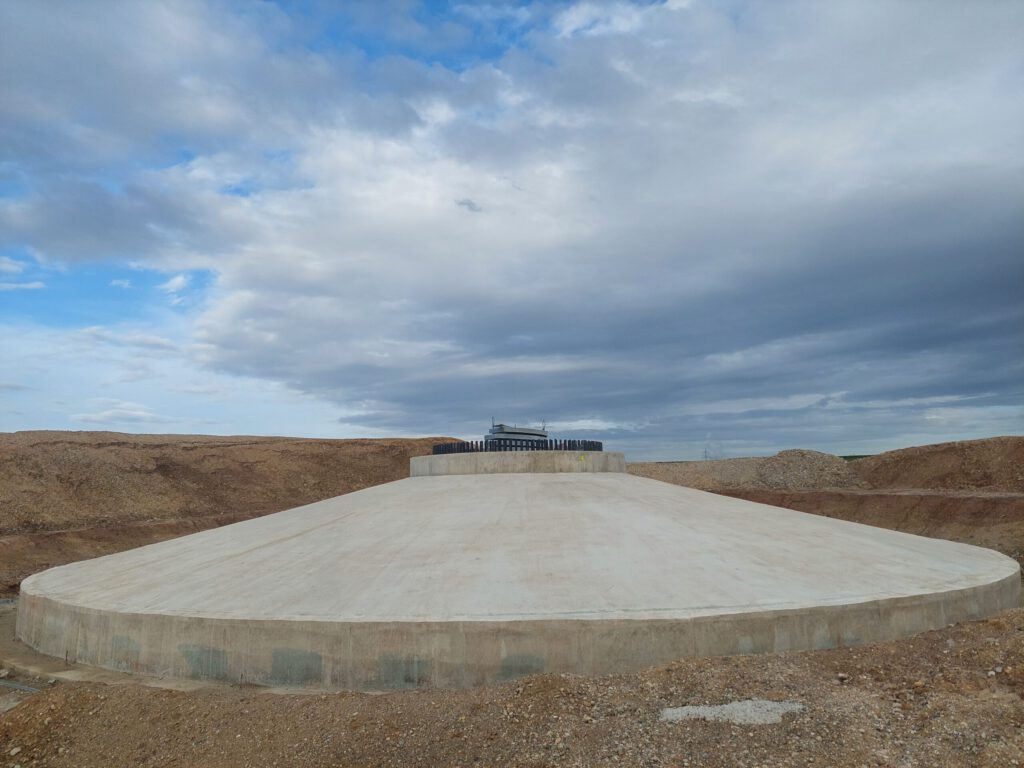

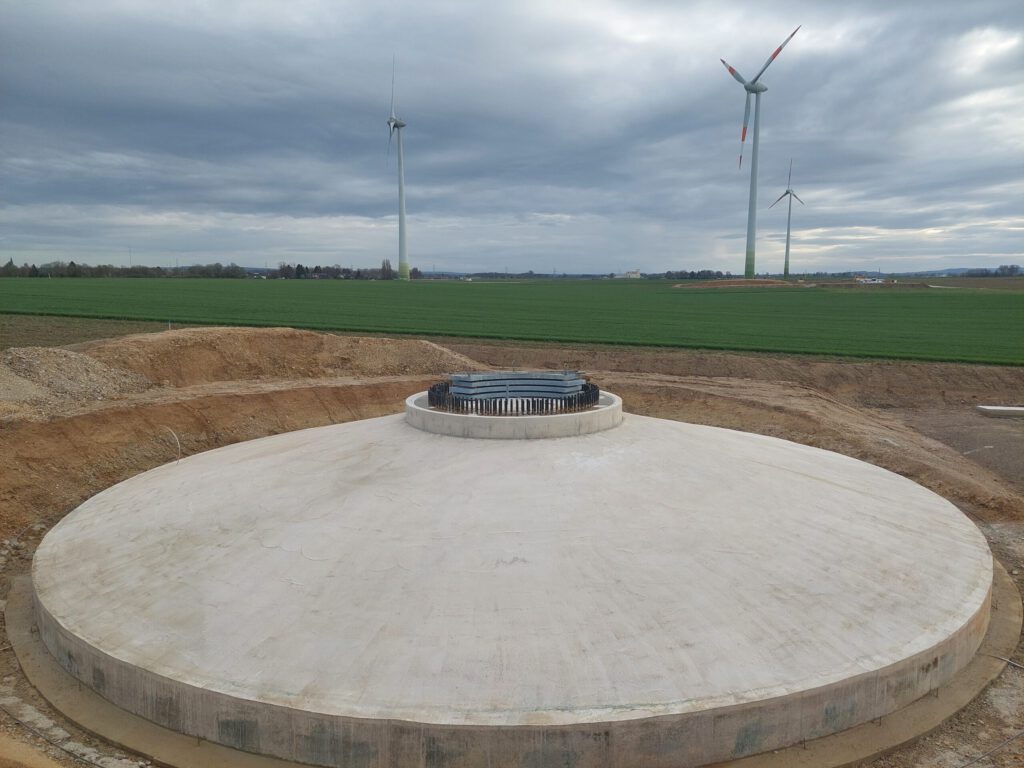

Foundation for N131 ready for take-over

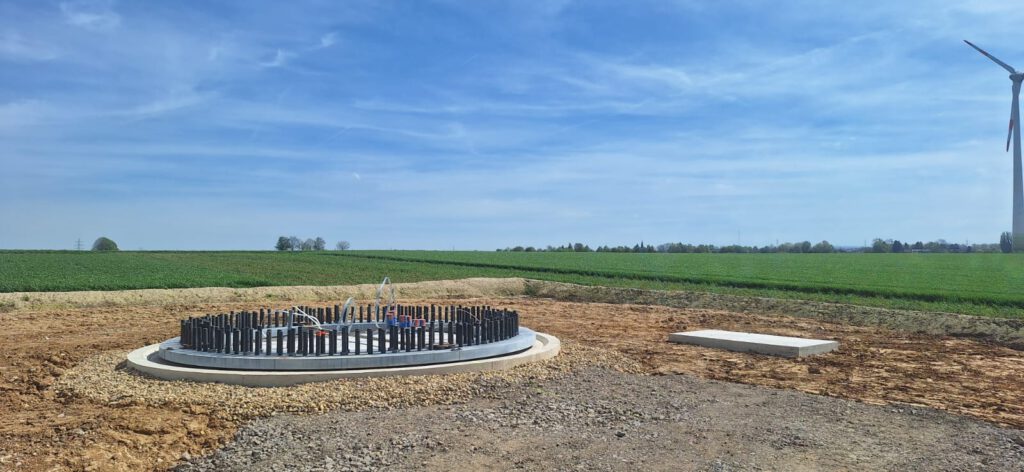

Ready for backfill
Turbine N131 ready for erection

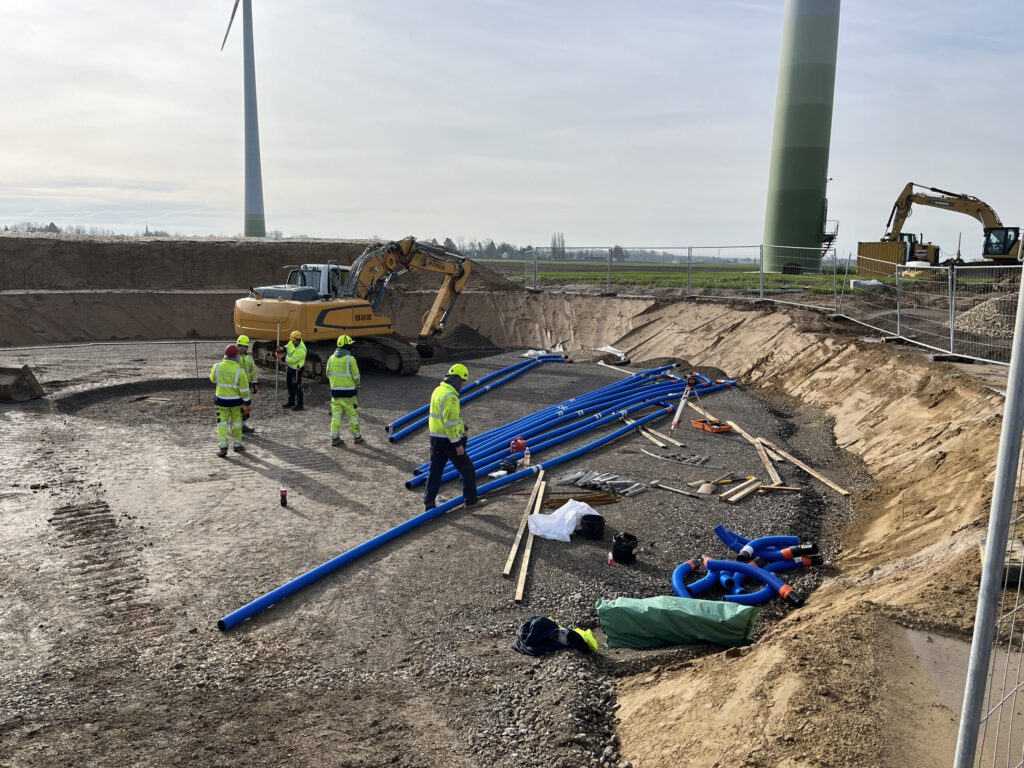

Starting the next Foundation for N117-TS106 with the ducts preparation anew
Fixing the correct height
Setting up the Anchor Cage …
Starting the laying of the reinforcement …
