Windpark Hoort (Germany)
Construction period: six weeks
Execution year: 2024
Client: NORDEX

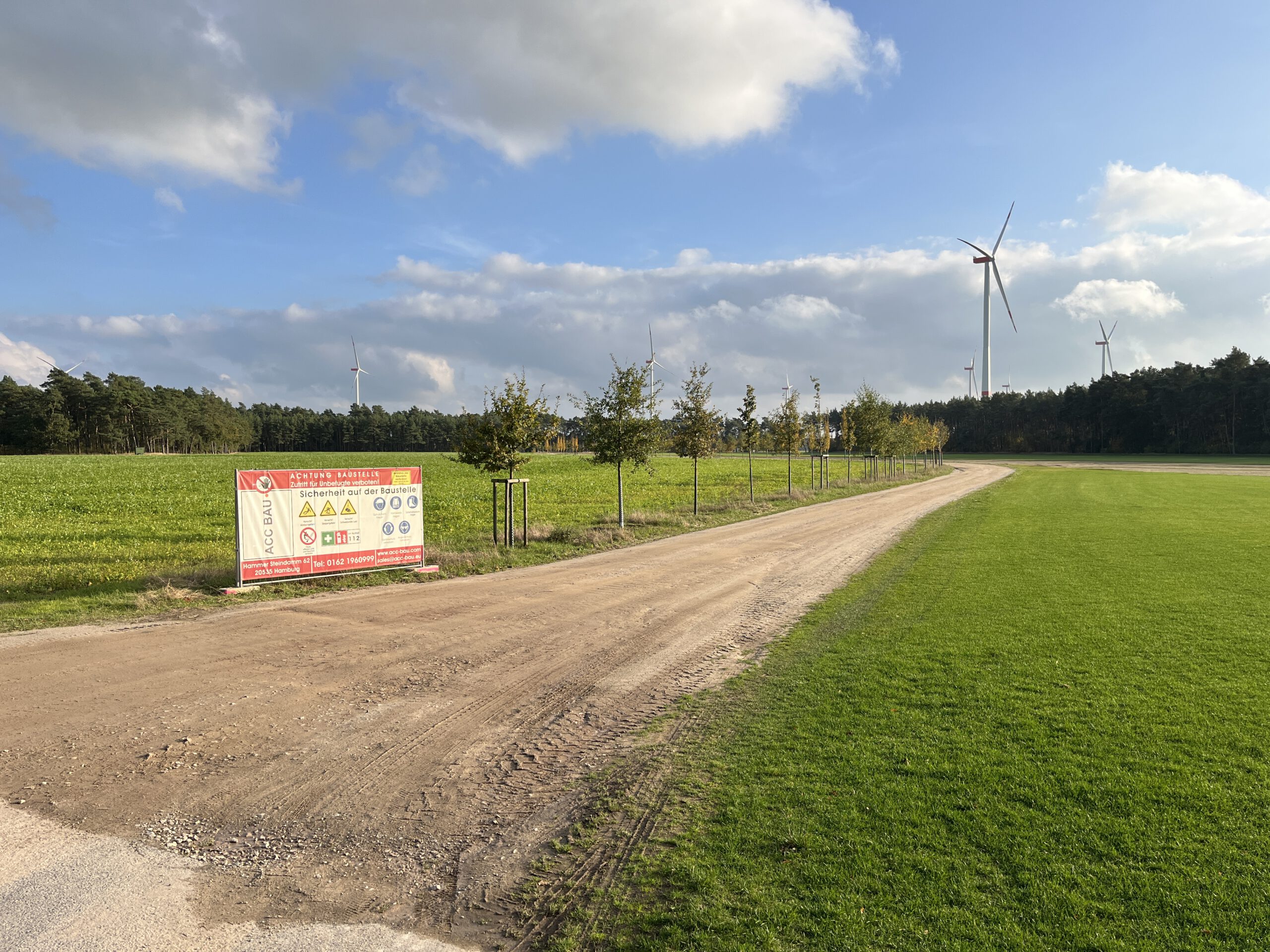

Address: 19230 Hoort, Bandenitzer Weg, Germany
1x NORDEX N117/3600 TS141 - WTG13

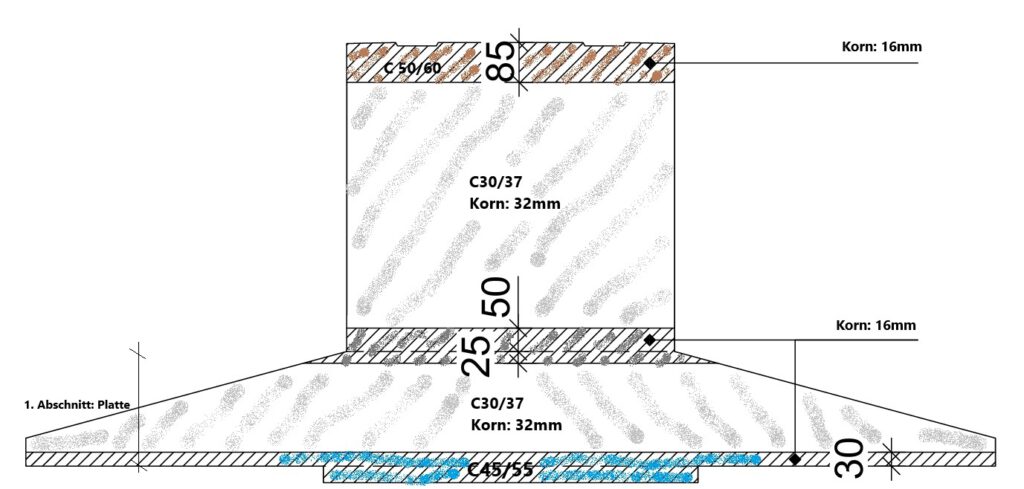

Drawing of the NORDEX N117 foundation out of the project plan
Height levelling by fix point

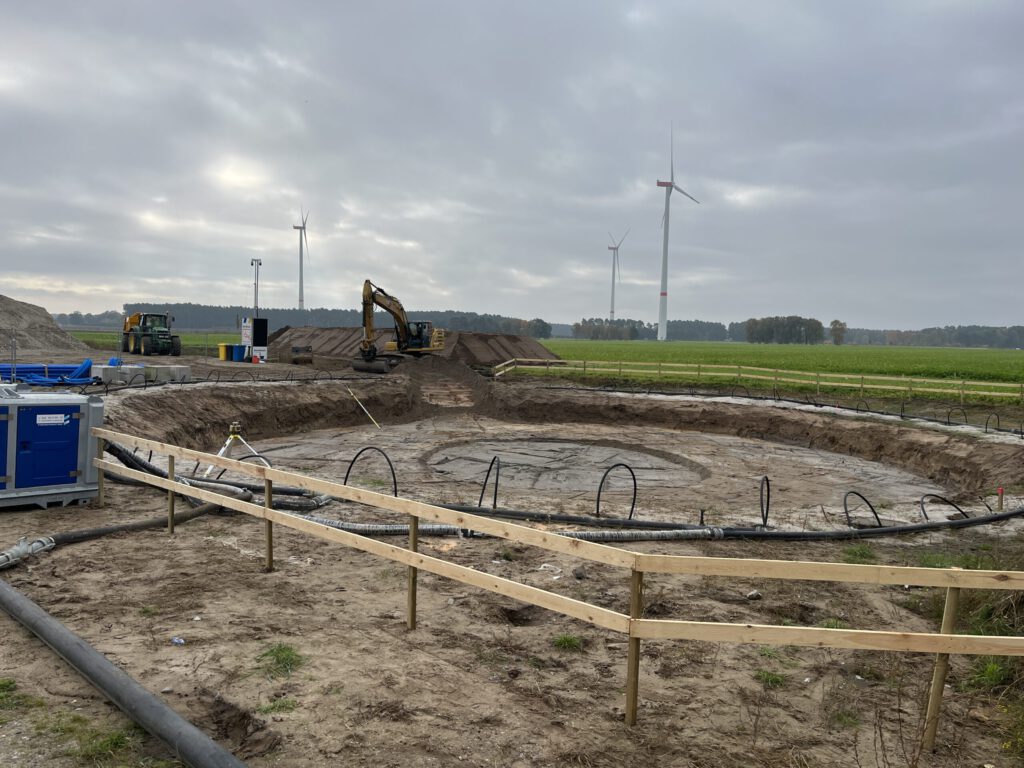

Excavation start

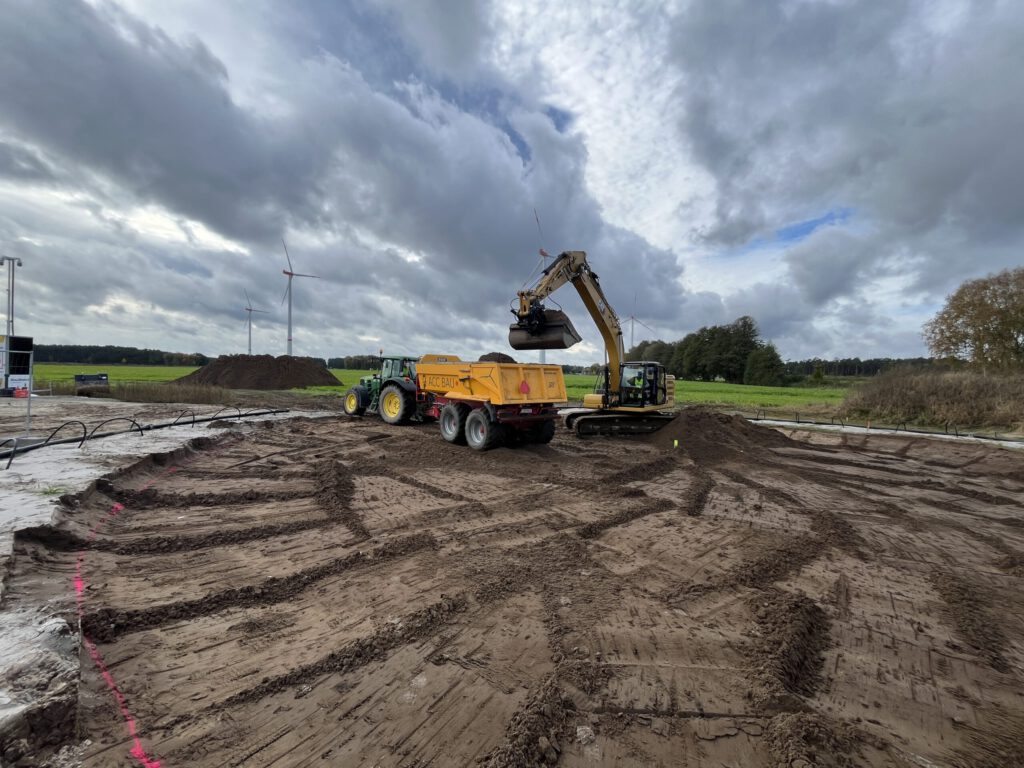

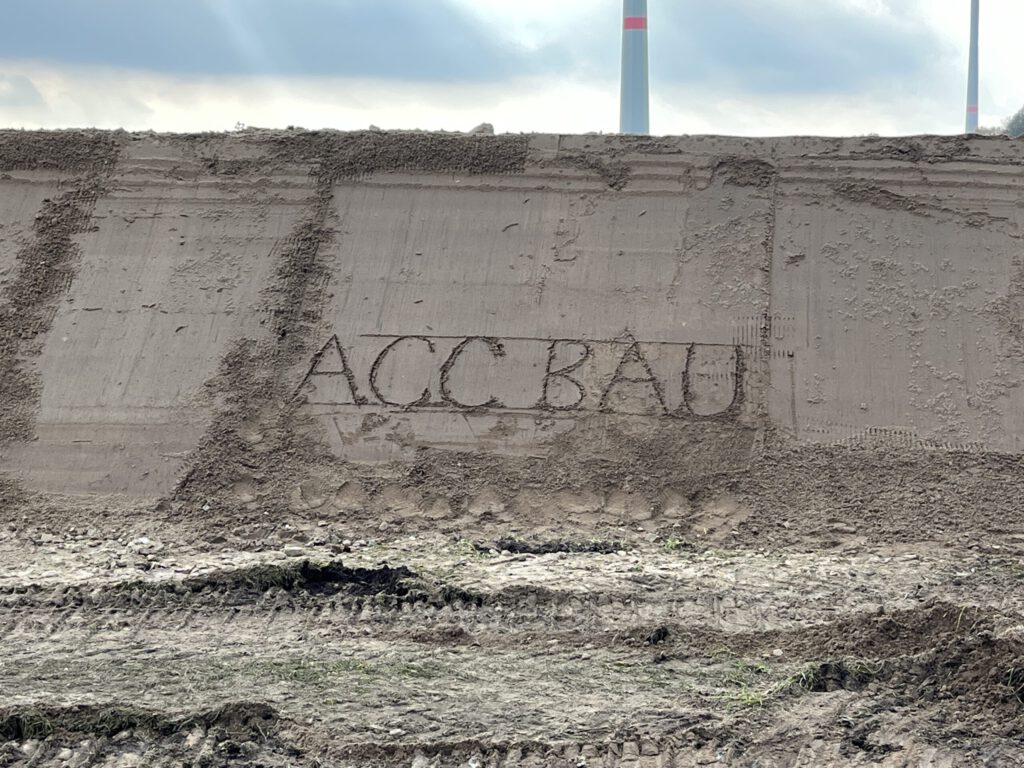

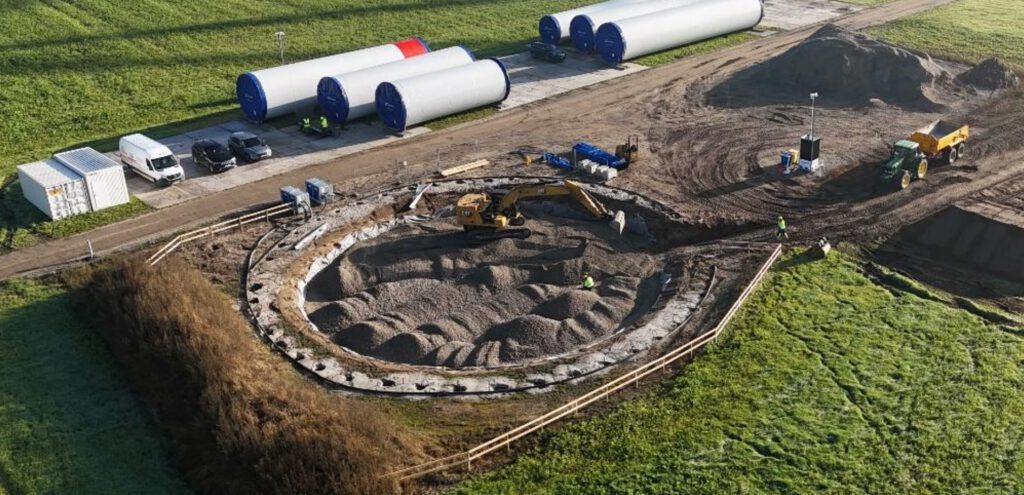

Excavation molehill next to pit
Excavation pit bottom

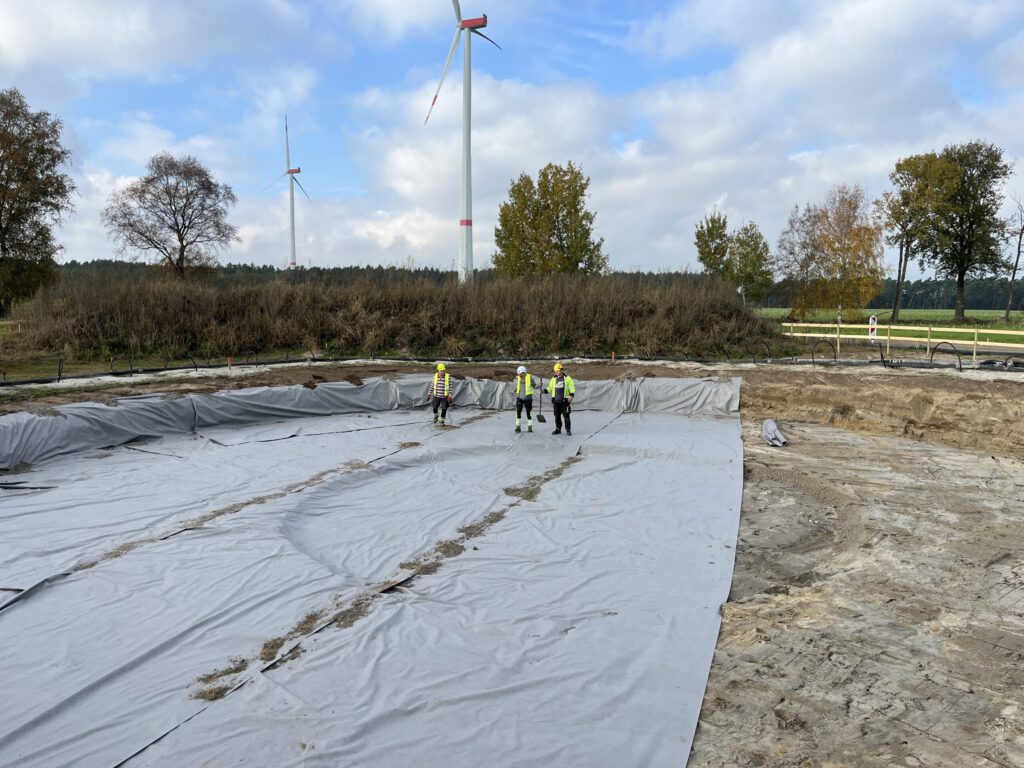

GeoVlies separation layer

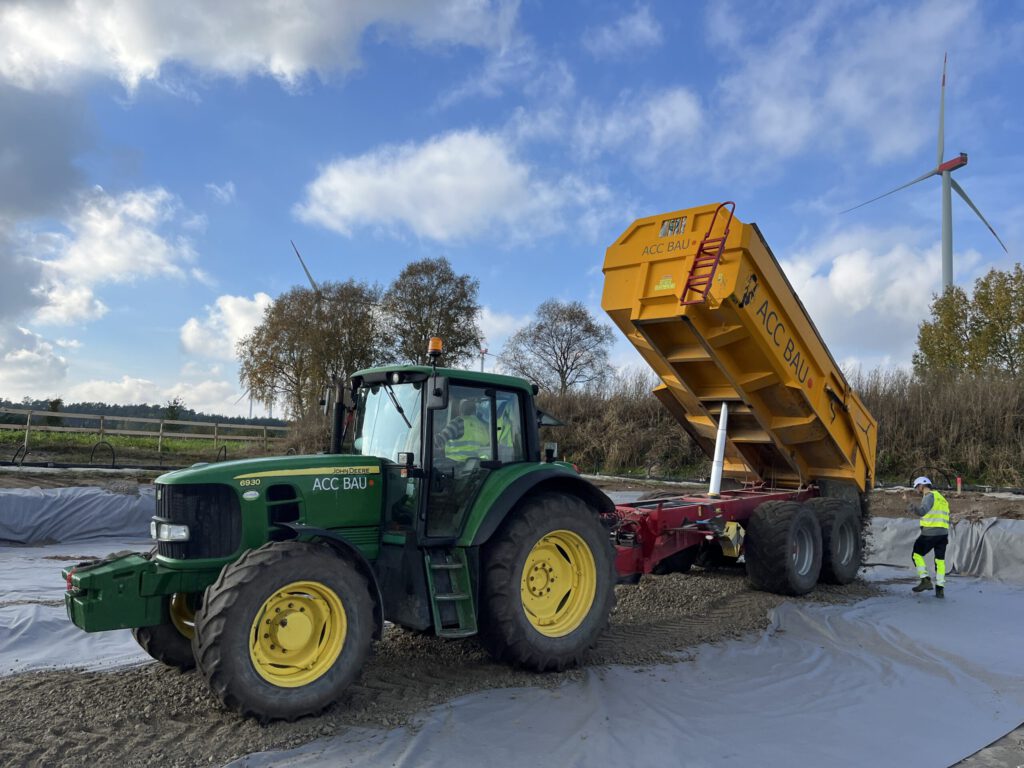

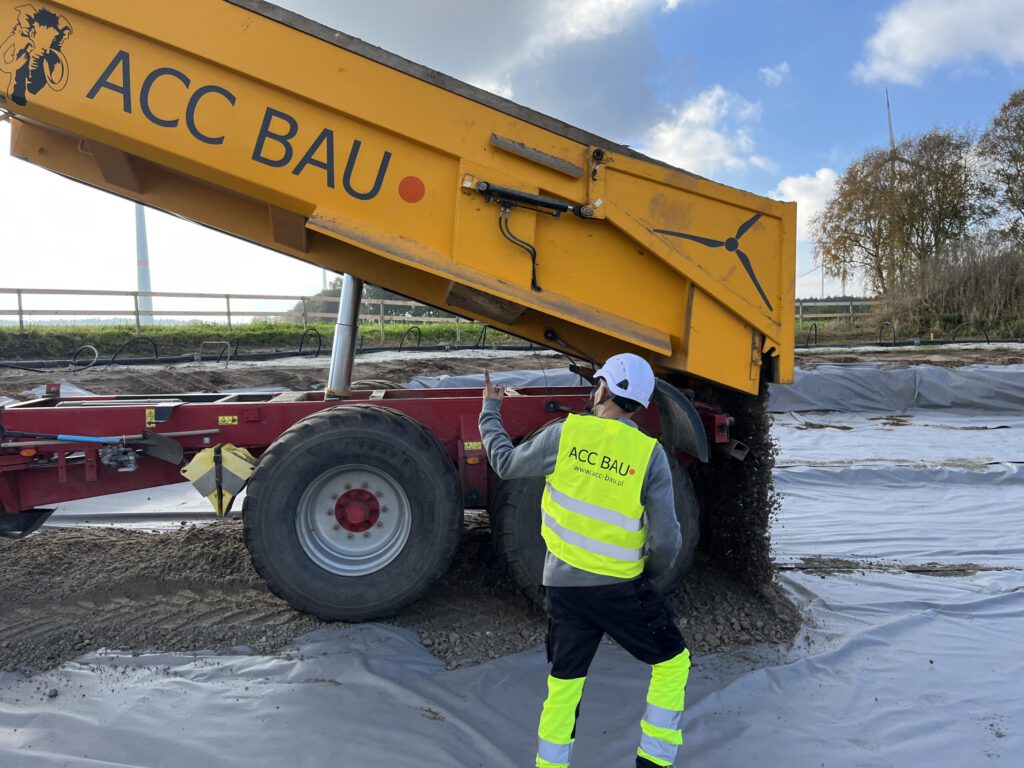

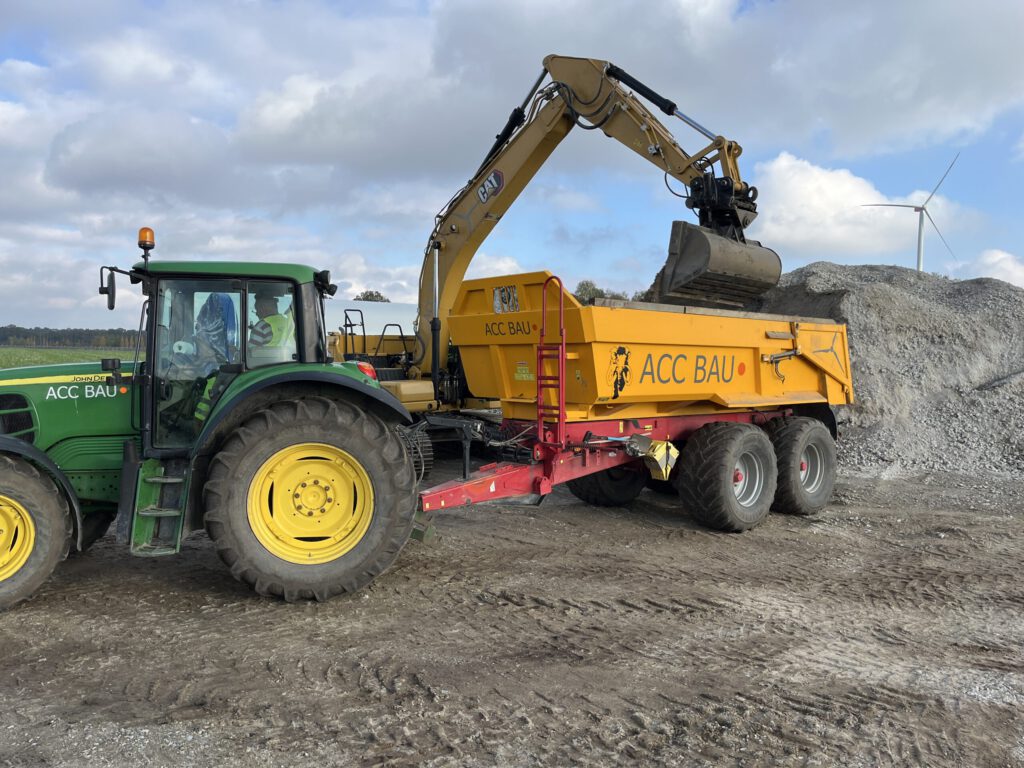

Gravel loading for base layer
Gravel front-end installation
Load transfer base layer installation

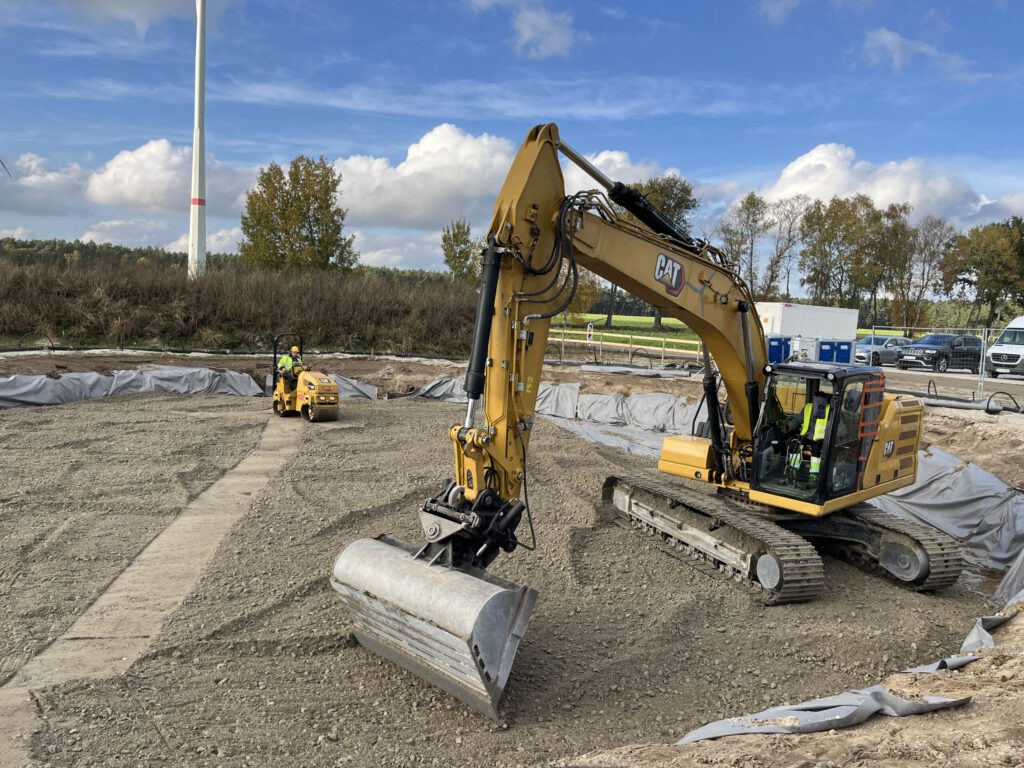

Layered compaction
Final gravel sub-base layer

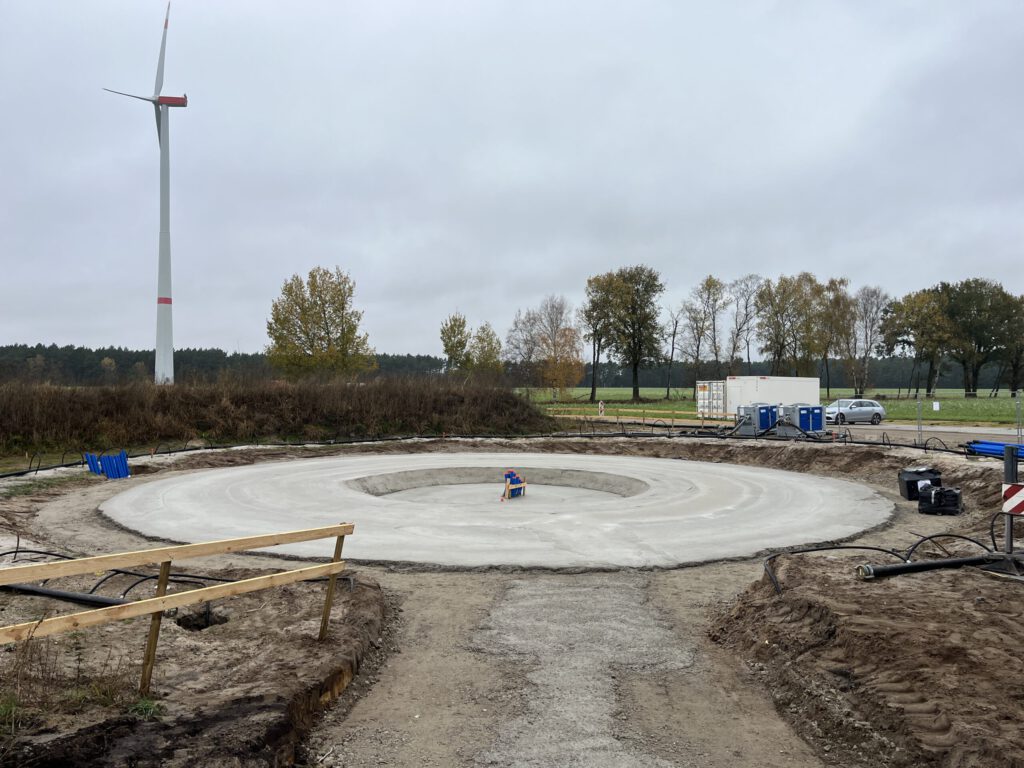

Concrete base layer

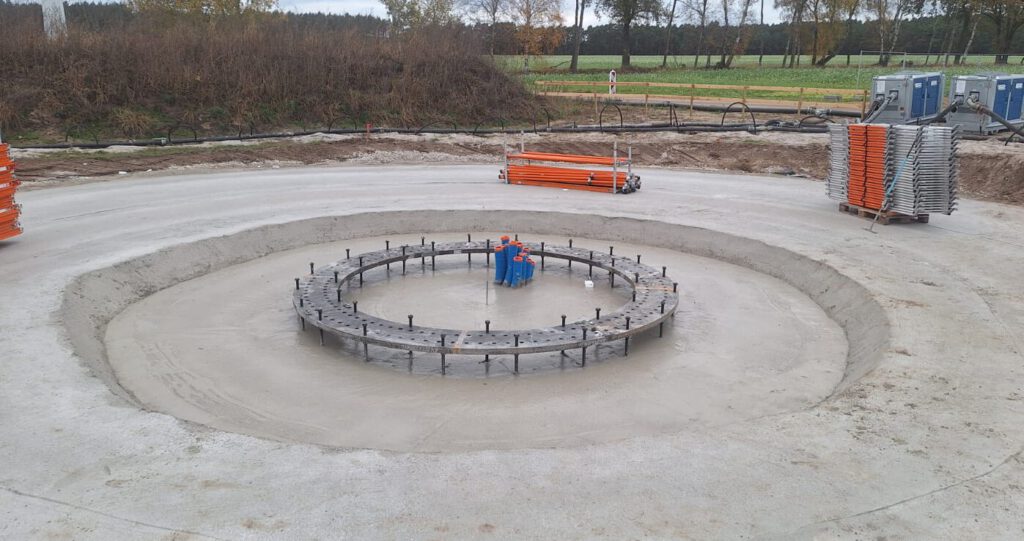

Center point of foundation

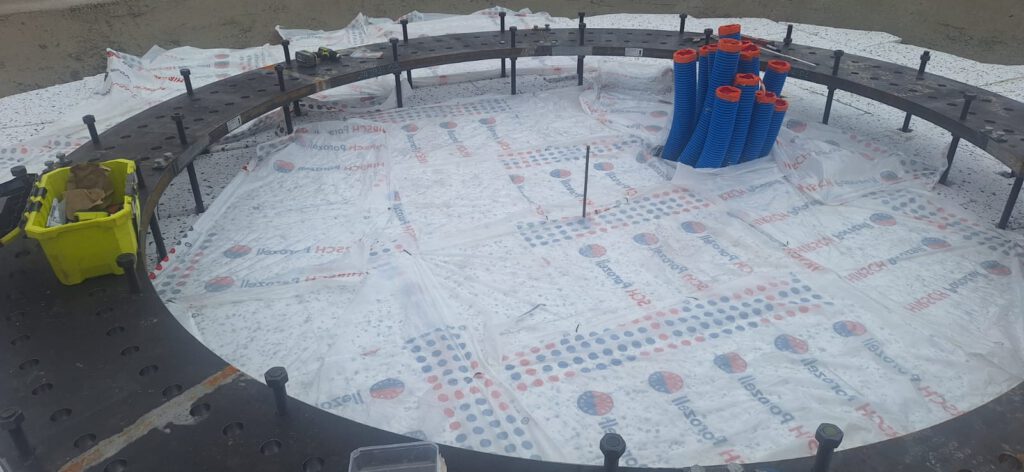

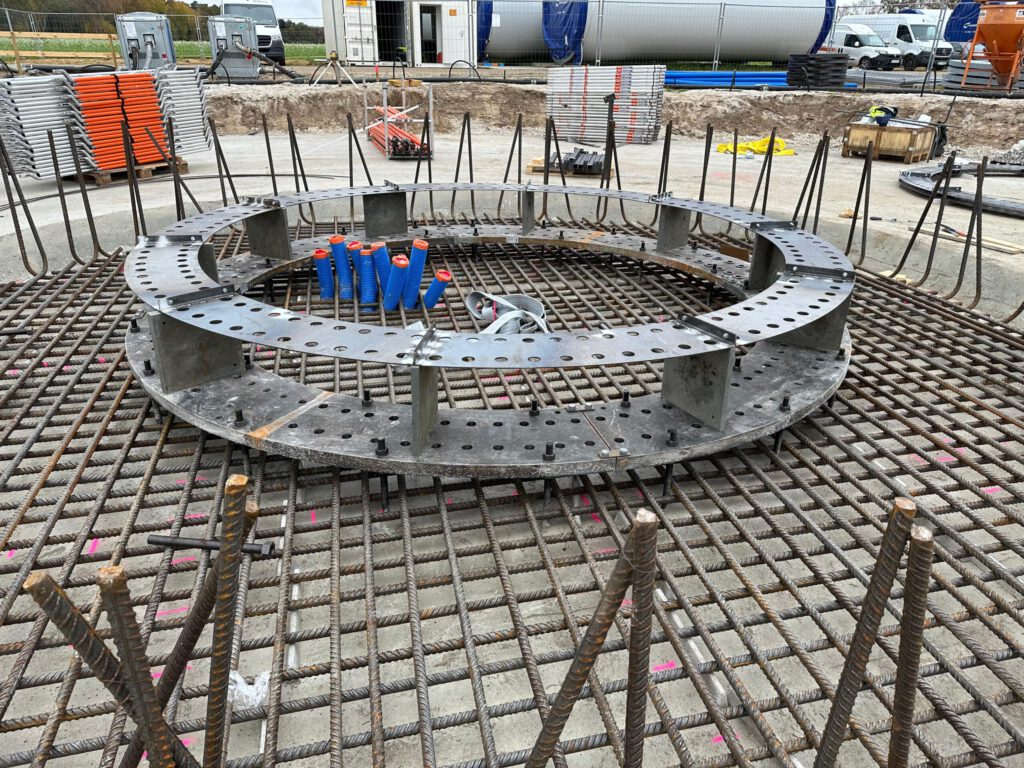

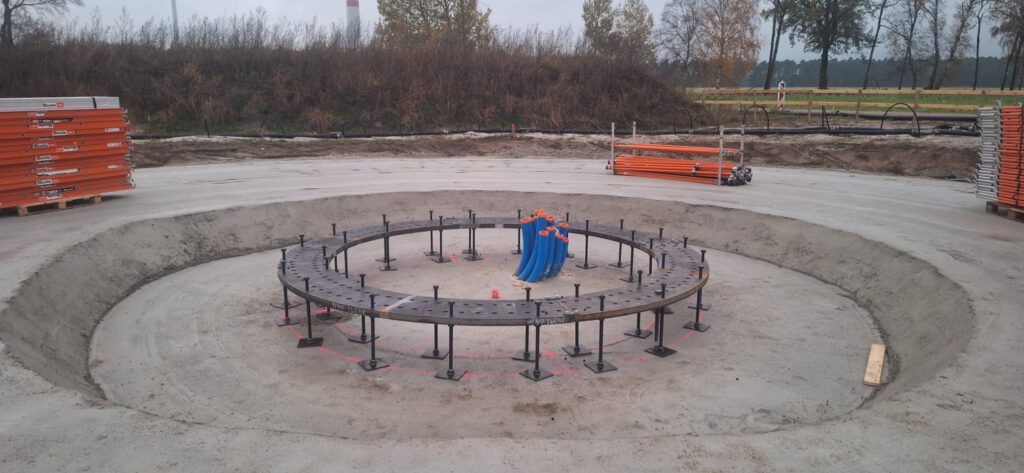

Levelled anchor plate in the center position

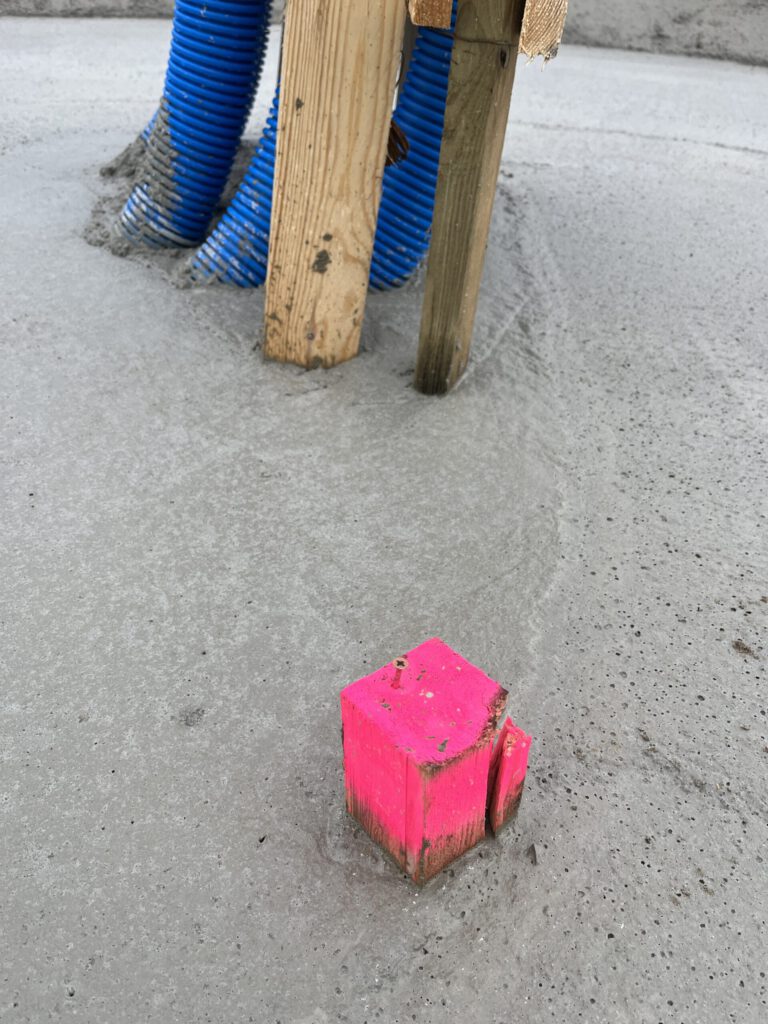

Soft-spot installed
Base layer ready for steel and anchor cage

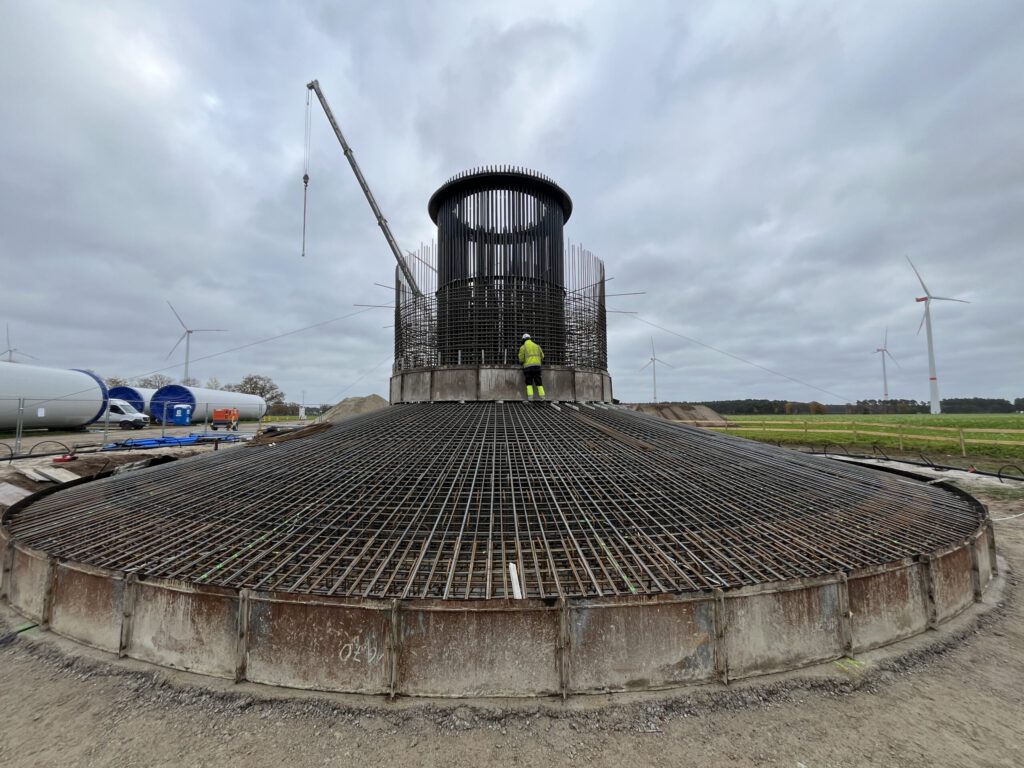

Slab reinforcement

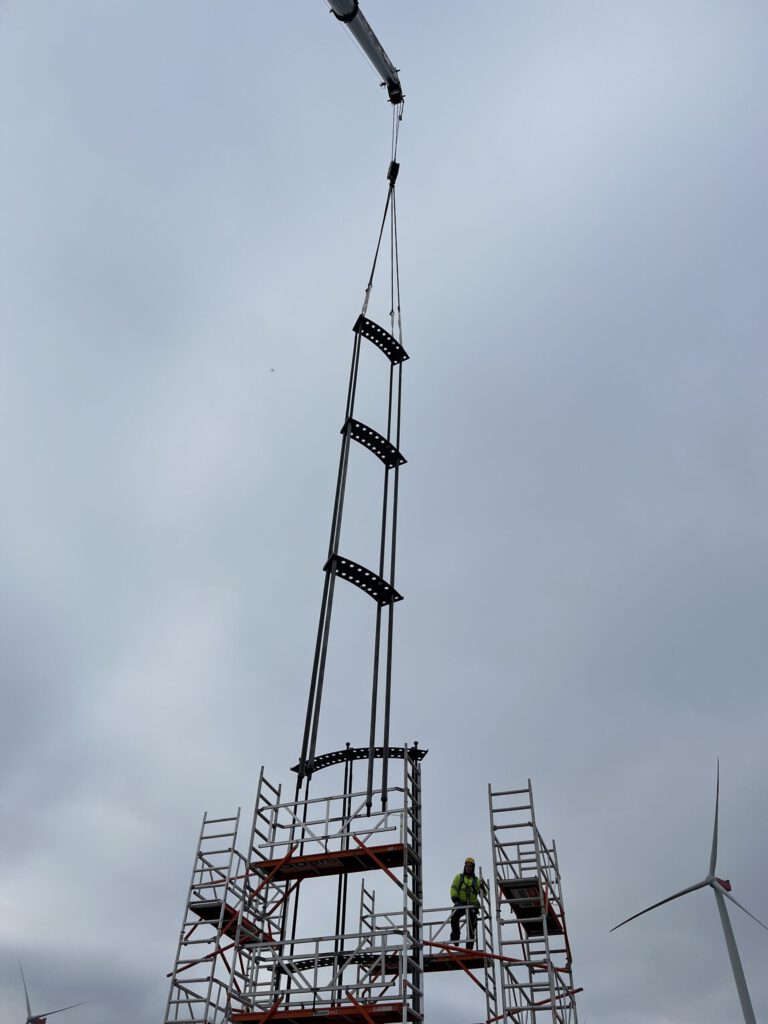

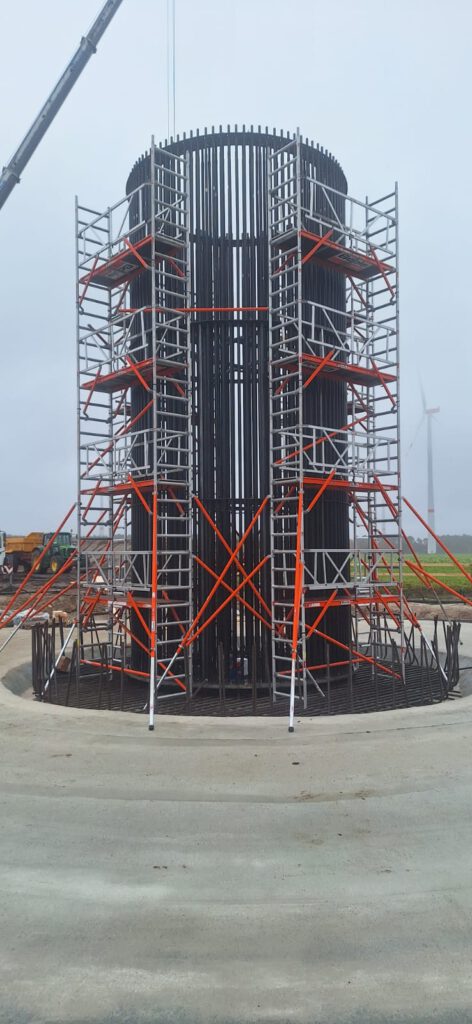

Anchor Cage erection

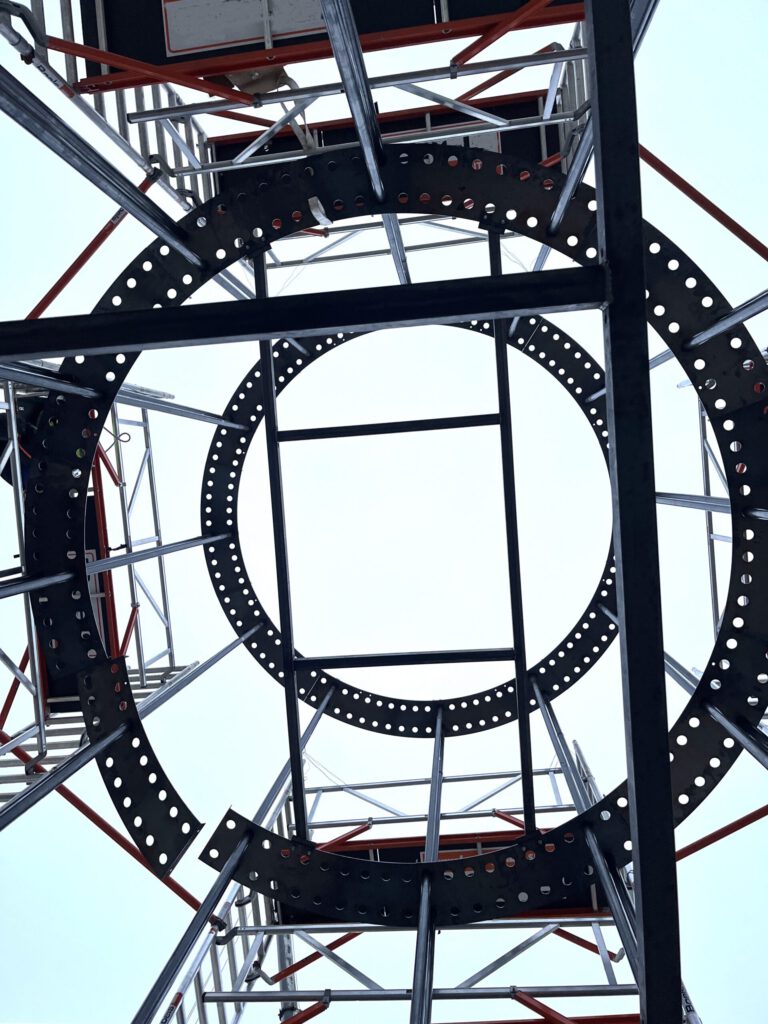

Inside sky view

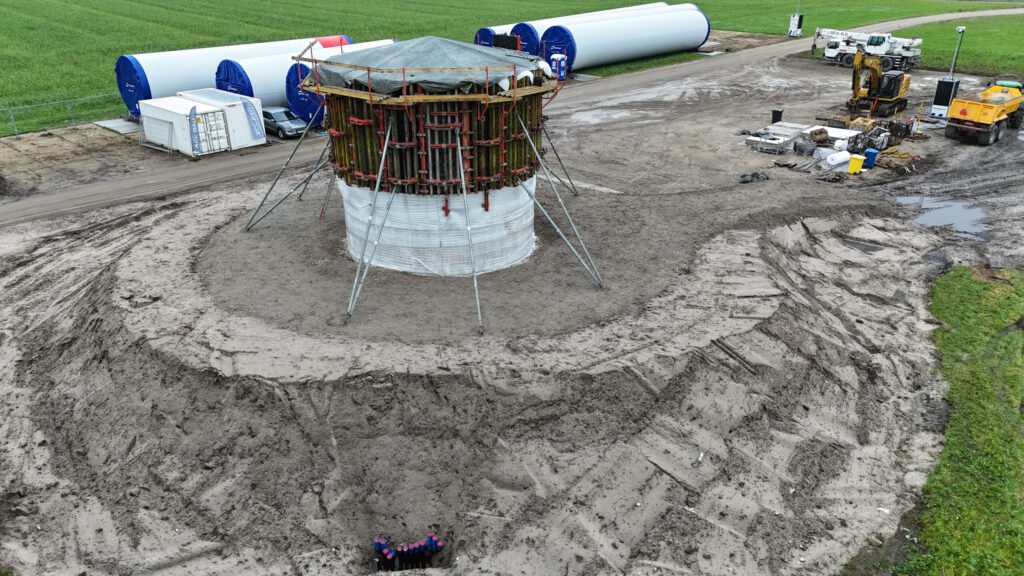

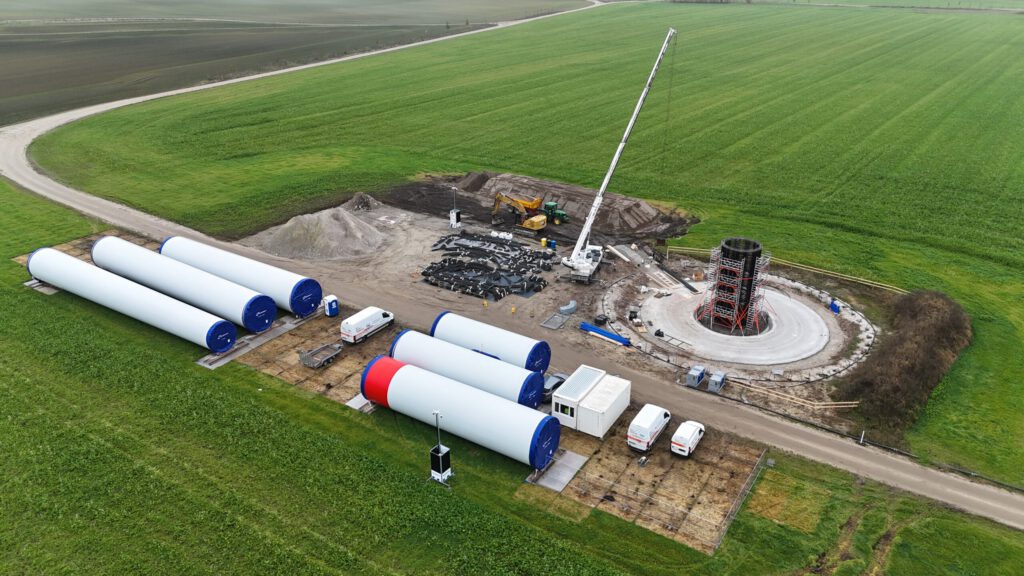

Bird’s eye view

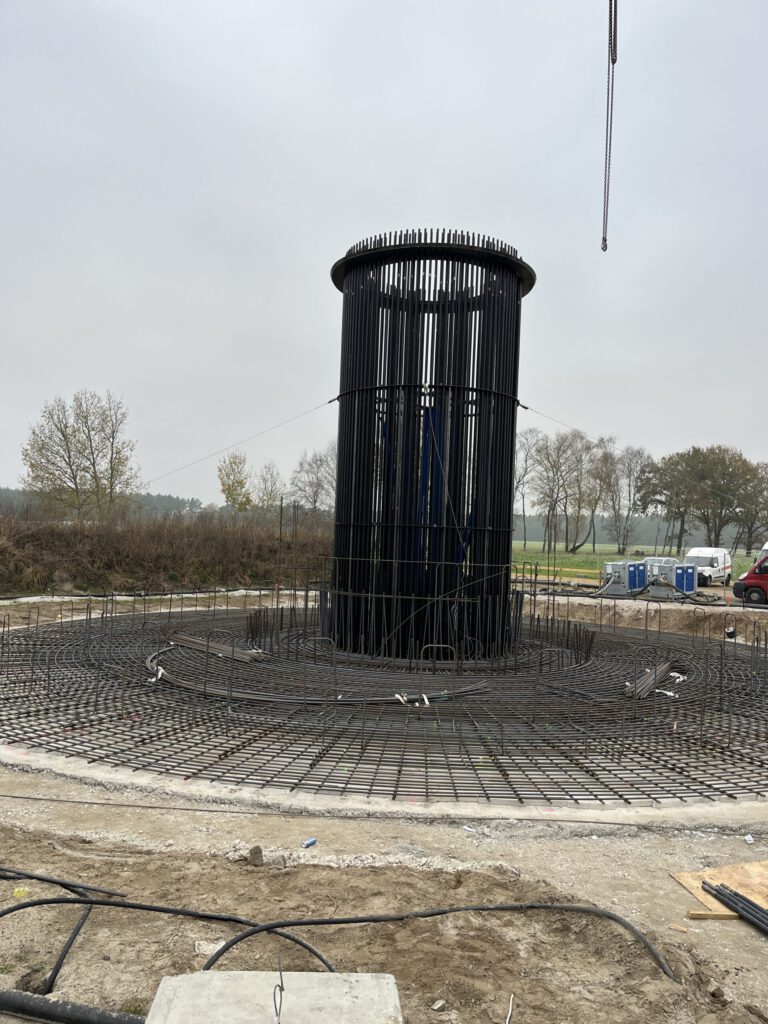

Anchor cage completed

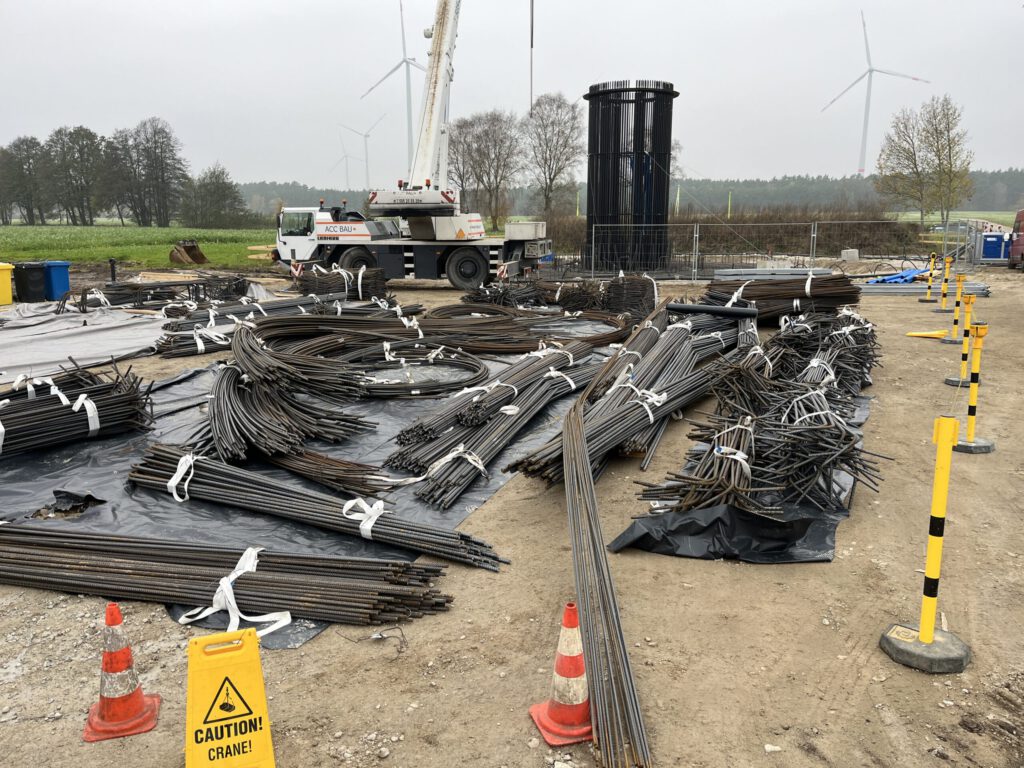

Laying of reinforcement
First 20t assembled

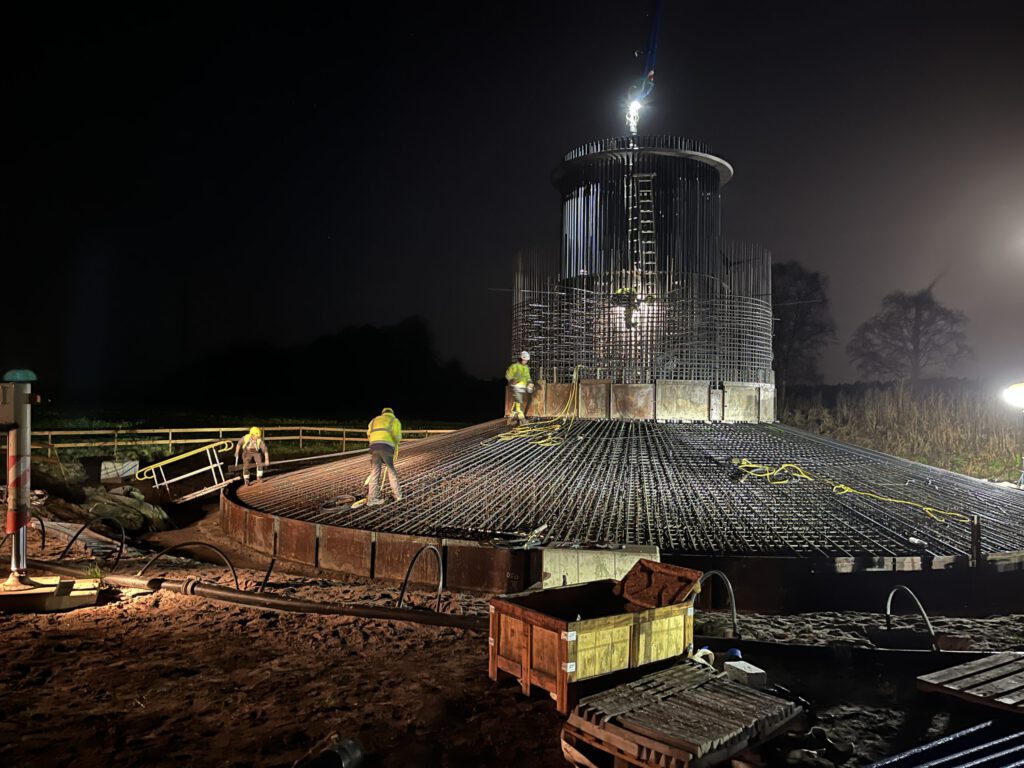

Steel assembly ready for first casting

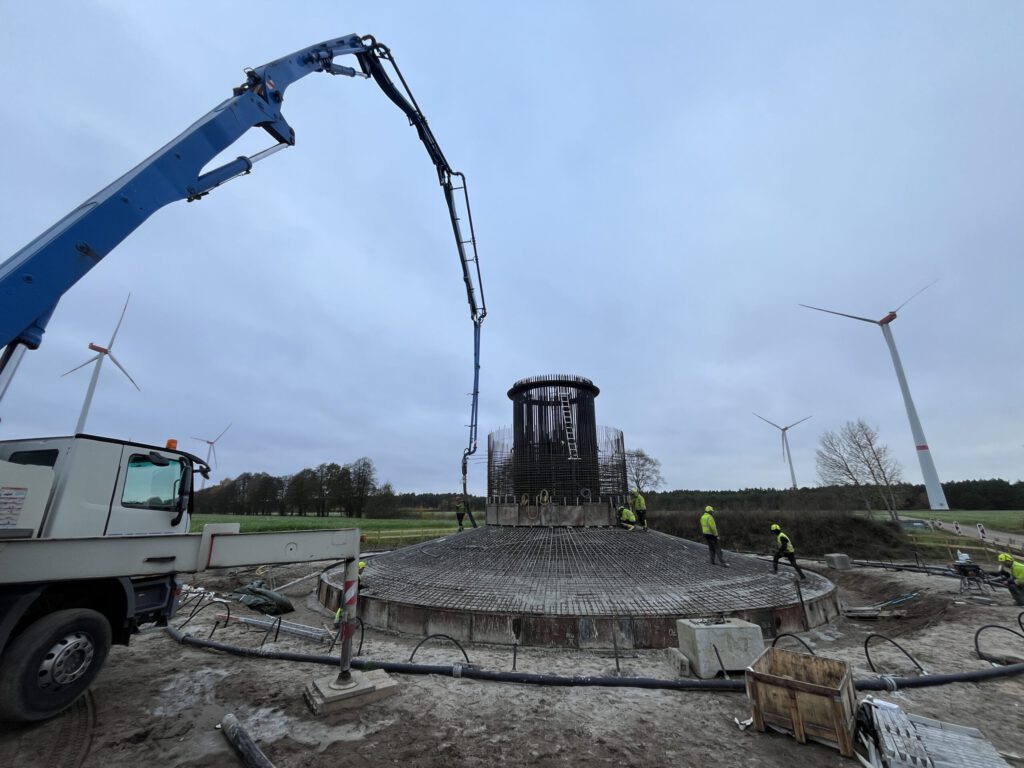

Casting started 05:00 h a.m.

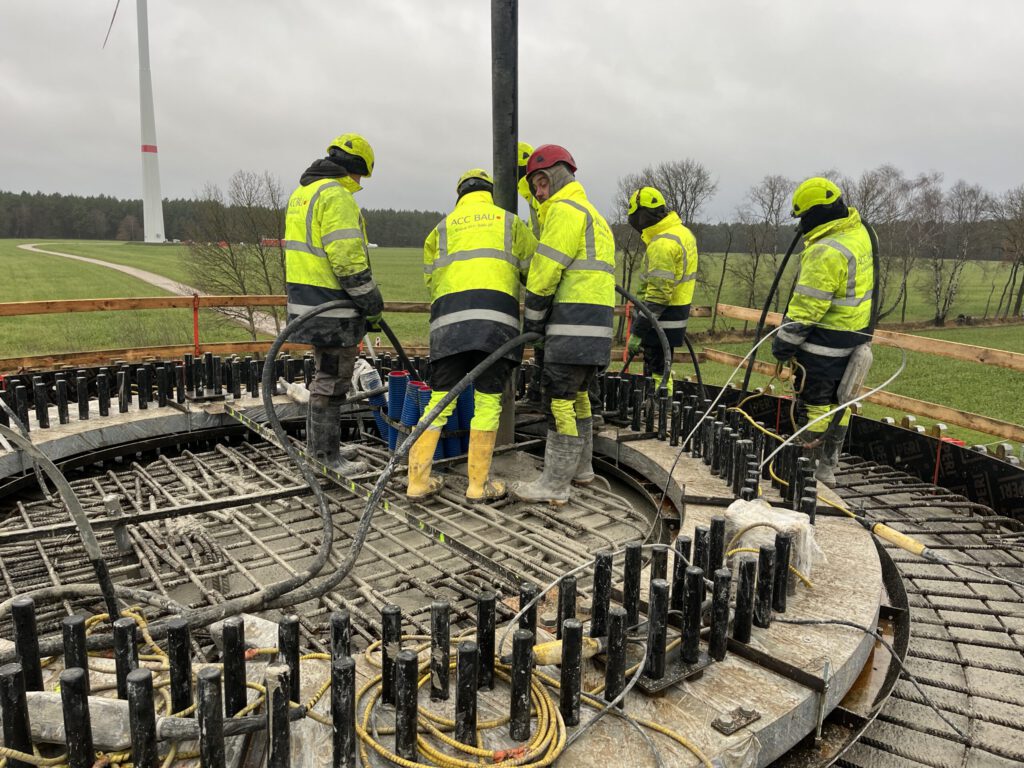

Casting of plate close to finish

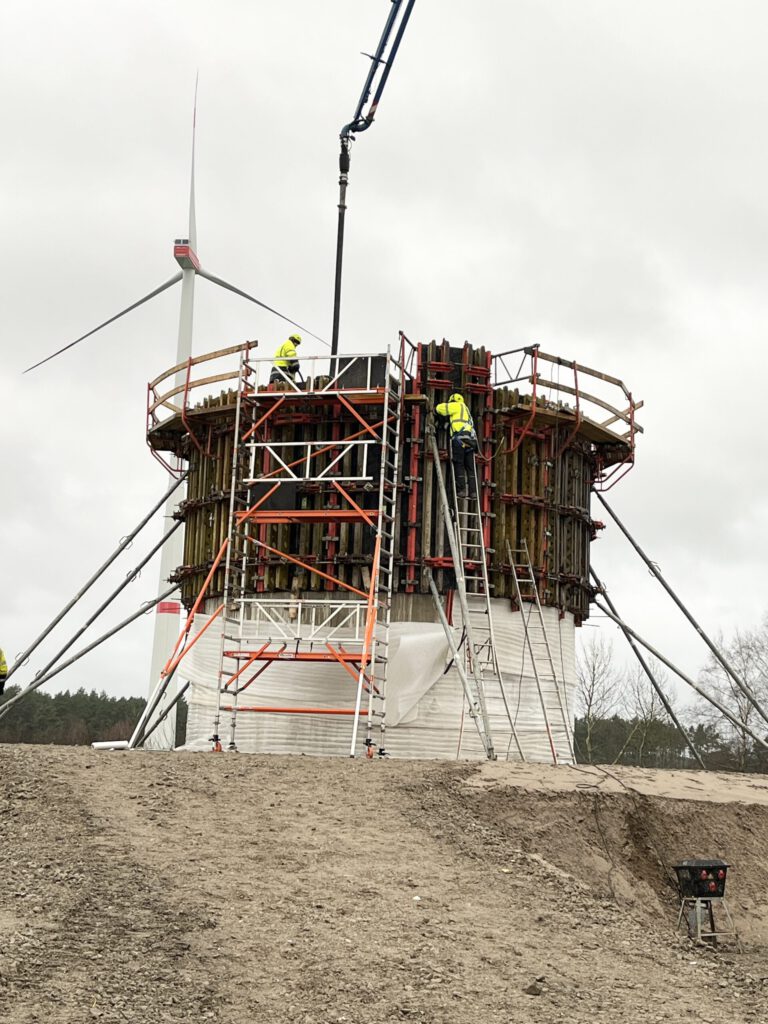

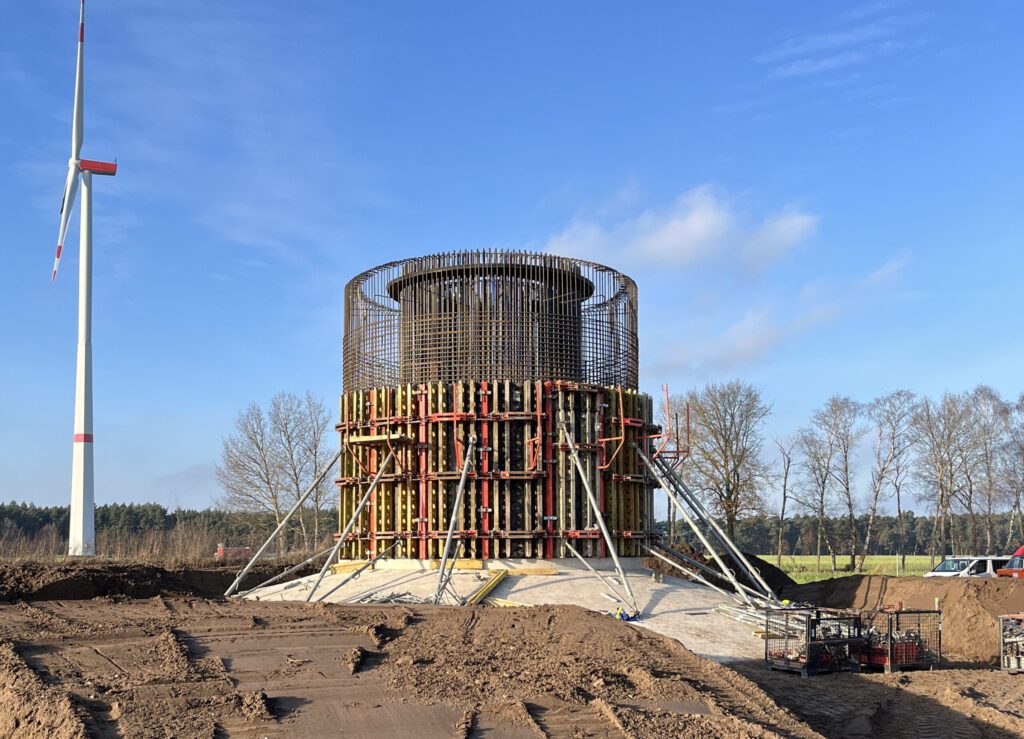

Works on pedestal tower shuttering
Finally casting the upper pedestal
Final fill
Aftertreatment and finish
Final backfilling and preparing for tower fitting team in the next step
Installtion process …

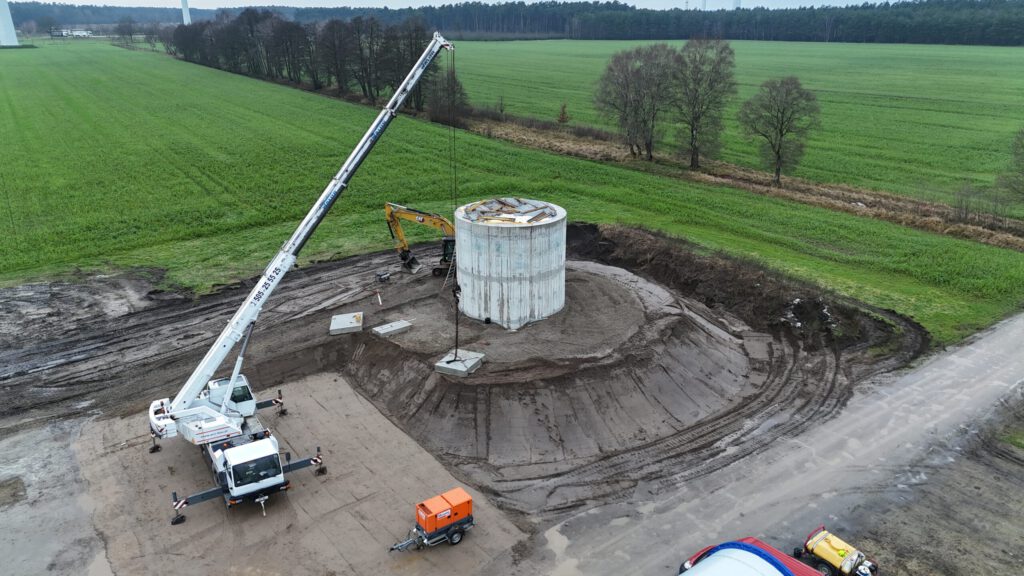

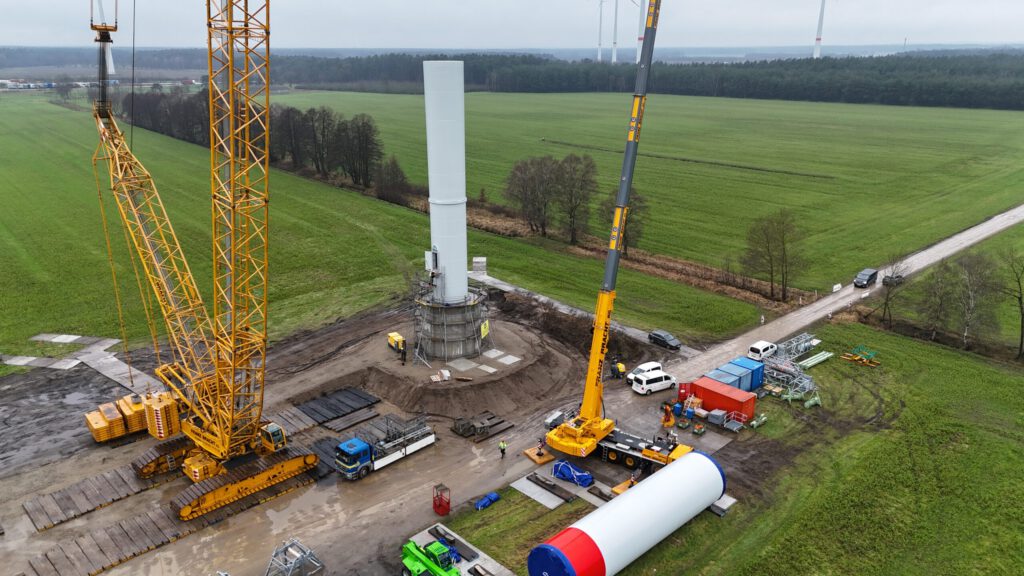

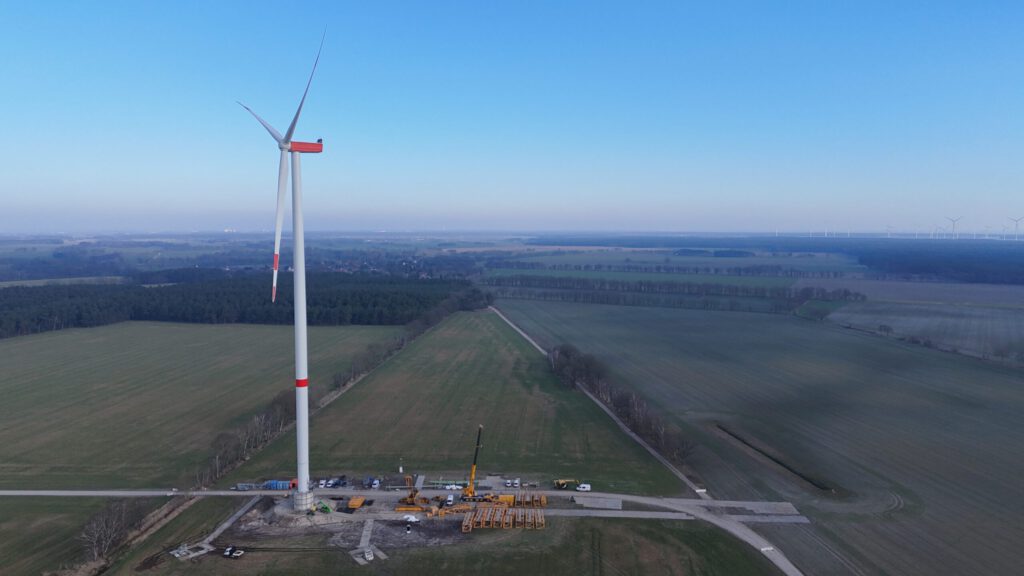

Turbine erected!
